Class H Polyester Resin Glass Fiber Banding Tape For Generators

Brand Name : Jiangnan

Model Number : H200

Certification : ISO9001:2015

Place of Origin : CHINA

MOQ : 500 Meters

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, wESTERN uNION

Supply Ability : 10000 Square Meters per day

Delivery Time : 14 Days after the Payment

Packaging Details : Carton Box，Woven Bag

Product Name : Adhesive Polyester resin fiberglass banding tape

Thickness : 0.3mm

Thermal Conductive : 0.512W

Feature : Anti-static

Working Temperature : 200 Degree

Adhesive : Double Sides

Advantage : Electrical Resistance

Contact Now

03mm Class H Polyester Resin Impregnated Glass Fiber Insulation Banding Tape For Motors And Generators


1. Introduction:

Jiangnan is offered from stock in two standards, Type F and H. Type H is for use on motors of temperature ranges up to and including Class H Plus (200° C). Armatures can be banded with this tape either hot or cold. This resin flow also results in greater prestress retention, thereby minimizing coil movement.

Class H Polyester Resin Glass Fiber Banding Tape For Generators


2. Specification

Properties Standard
Width 25±2
Thickness 0.30±0.03
Volatile content ≤2
Resin content 26±2
Soluble resin content ≥90
Tensile strength ≥2000
Refered to total cross section of Glass-resin tape measured at 20oC ≥1000
Refered to total cross section of Glass-resin tape measured atc150oC ≥700

3. Curing condition(Time to bring the piece to temperature is not considered)


Temperature		 ℃ 160 150 135 120 115

Time
Hours		 2.5 3 5 14 20

4. Storage stability


Storage temperature		 ℃ 10 15 20 30

Time		 H200
Months		 24 18 12 8
F150 20 15 10 6



5. Properties


Item
Unit
Figure

Type		 — H200 F150-

Thermal class		 — H(200℃) F(155℃)

Volatile content		 % ≤2

Loss of weight at calcination		 % 26±2

Soluble resin content		 % ≥90

Tensile strength before curing		 N/cm 0.20mm ≥1200 ≥1000
0.30mm ≥2000 ≥1500

Maximum pull while banding		 N/cm 0.20mm ≥600 ≥500
0.30mm ≥1000 ≥800

Tensile strength of ringlike sample at room temperature after curing		 Mpa 20℃
≥1000 ≥900

Tensile strength of ringlike sample at working temperature after curing		 Mpa 200℃ 155℃
≥700 ≥560

Proof tracking index		 V ≥500

Arc resistance		 S ≥160

Dielectric strength		 KV/mm ≥12

Thermosetting		 — OK

Loss of tensile strength after soaked in oil		 % ≤10

6. Features:

Resiglass banding tape offers outstanding properties and performance, including high tensile strength, easy in application.

It is made up of high strength glass yarn impregnated with high temperature resistant thermoset polyester resin.

7. Application fields:

As class 200°c insulation its used for motor coils and transformer cores and coils, to withstand the mechanical stress during operation.


Product Tags:

Class H Fiberglass Insulation Tape



Glass Fiber Banding Tape



Generators Fiberglass Banding Tape

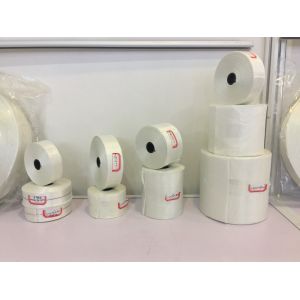

Cheap Class H Polyester Resin Glass Fiber Banding Tape For Generators for sale
